Case study 03 · Setup B2
Pesta Seni Rakyat
Dermaga Diraja, BSB
Event requirements and equipment
Five-day stage audio with support for selected venue areas
The client needed speakers for the stage and sound support across several selected areas of the open venue throughout a five-day public programme.
- Package
- Setup B2
Event-specific speaker arrangement - Event duration
- 5 consecutive days
- Speakers
- 2 × Alto TS415
2 × Alto TS410 - Mixer

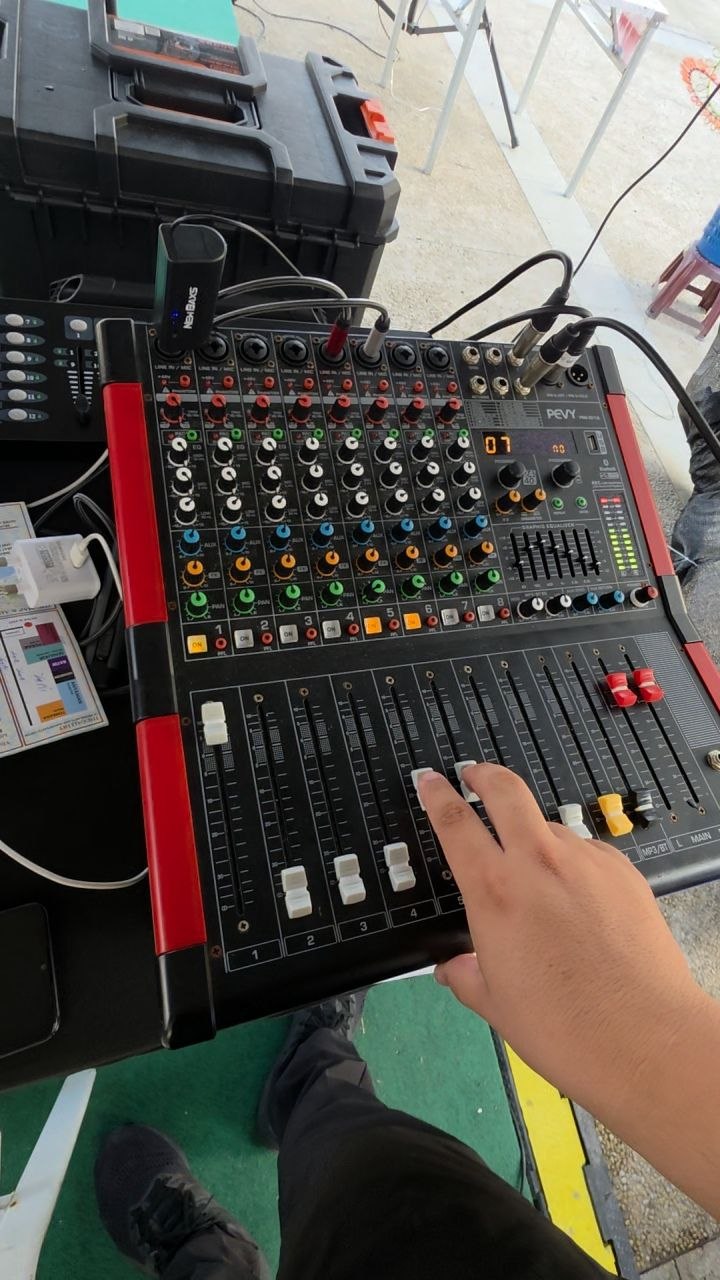

- PEVY PMX-821UL
- Microphones
- 3 wireless microphones
- Lighting add-on
- Basic DMX lighting control
6 × RGBW static PAR lights
01 · Speaker placement
Stage sound with support for selected areas

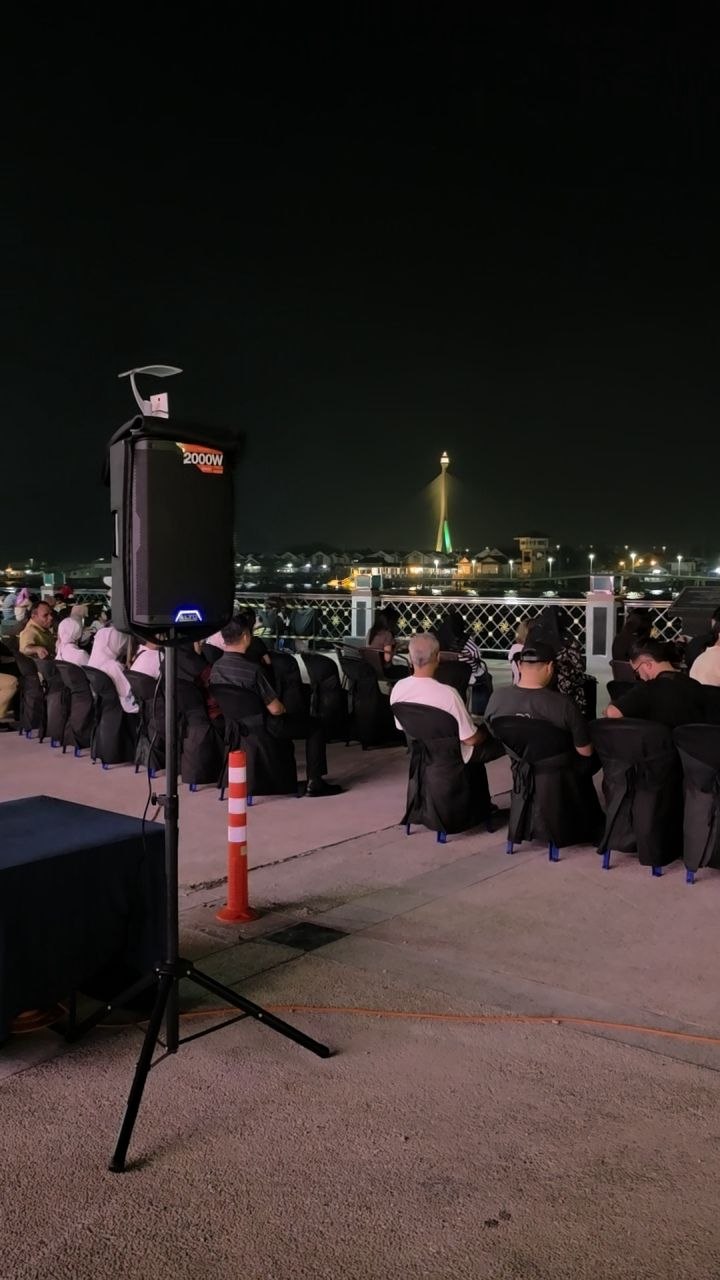

Two TS415 speakers were positioned at the stage. One TS410 was placed near the middle of the building and the second TS410 along the left side, extending sound support beyond the main stage area.
02 · Preparation and coordination
Regular communication across a five-day event
As this was the team’s first full five-day deployment at Dermaga Diraja, requirements were discussed with the client before and throughout the event. Practical adjustments were agreed so the team could meet the programme’s needs within the available equipment and operating limits.
03 · Coverage challenge
Managing the furthest audience areas
The requested coverage reached almost 100 metres, and the sound level was lower at the furthest point. It remained manageable for this event, but we would not recommend repeating the same arrangement where consistent sound is required over a similar distance. A larger system planned specifically for the venue should be assessed before confirmation.
Result
A smooth five-day programme and a clear operational lesson

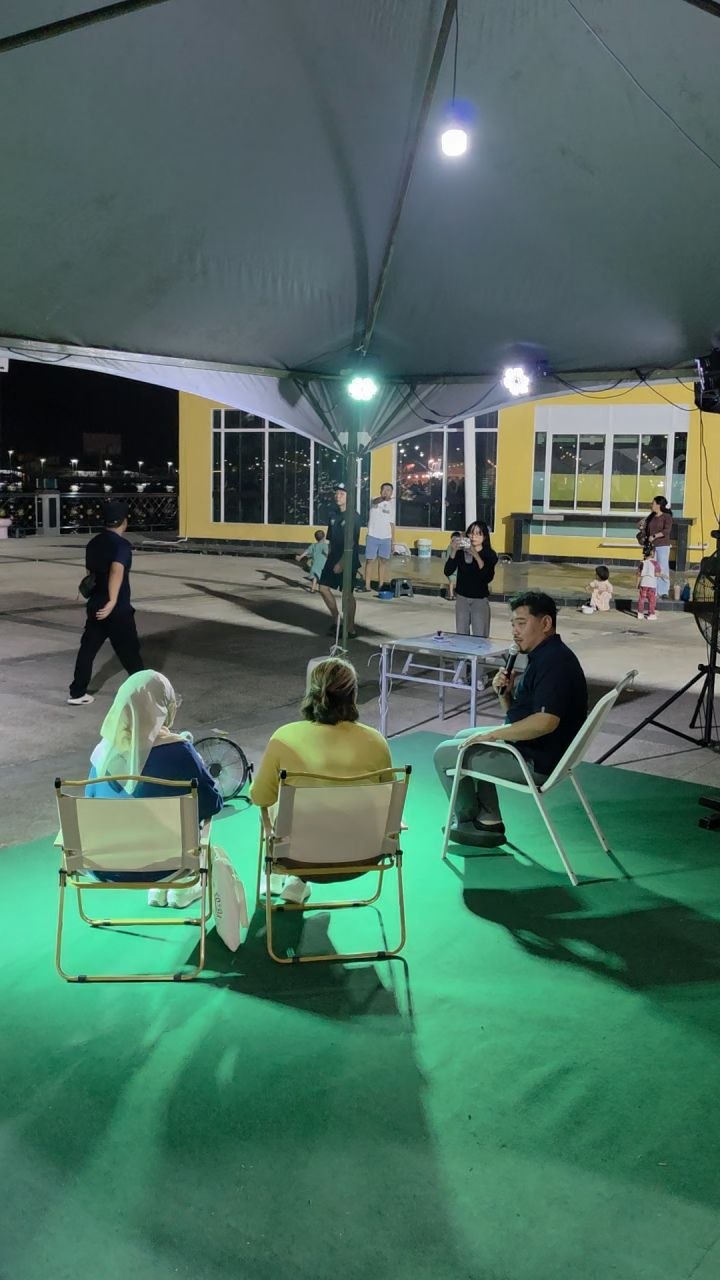

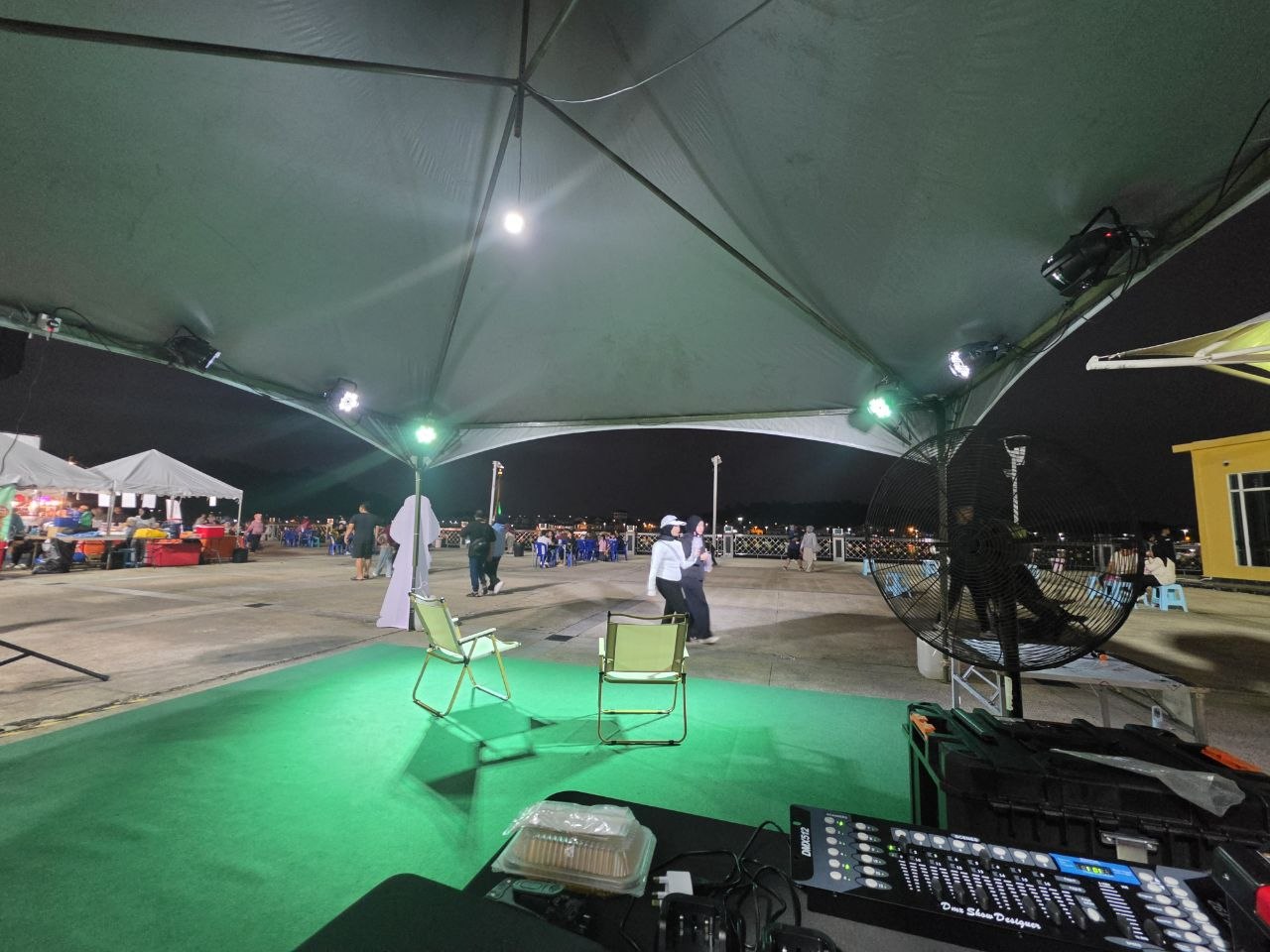

Alhamdulillah, the programme ran smoothly across all five days. The sound supported the stage and selected audience areas, while the basic static lighting covered the stage. The experience also showed that a future event requiring consistent coverage across a similar distance should use a larger system planned specifically for the venue.
Exact client feedback
Feedback 01
i would like to highlight that we are not just paying for your sound system alone, but also your service. despite the difficulties, i'm still grateful that i chose your business because i dont think its easy to find a very cooperative sound system person(s). thank you for being able to come up with immediate solutions to the sound system, or any of the event preparations whenever we struggled ourselves 🙏🏻 definitely not your responsibility, but we're thankful for you guys punya care.
overall, Alhamdulillah everything is fine for us for your side. thank you once again 🙏🏻✨
Feedback 02
A big thank you for Dhiayul Iman providing the PA system for our event 🫶🏻
Everything went smoothly, and the sound was clear throughout the programme. From the announcements to the podcast, the setup really helped bring the event atmosphere to life and made it easier for us to engage with the crowd. We also truly appreciate how helpful and easy the team was to work with. Your support made a big difference on the day, and we’re grateful to have had you as part of the event.
Looking forward to working together again in the future! 💜
Planning a similar event?
Let us review the venue and programme with you
Setup B2 is a useful reference, but the final arrangement still depends on the venue, audience layout and microphone requirements.
